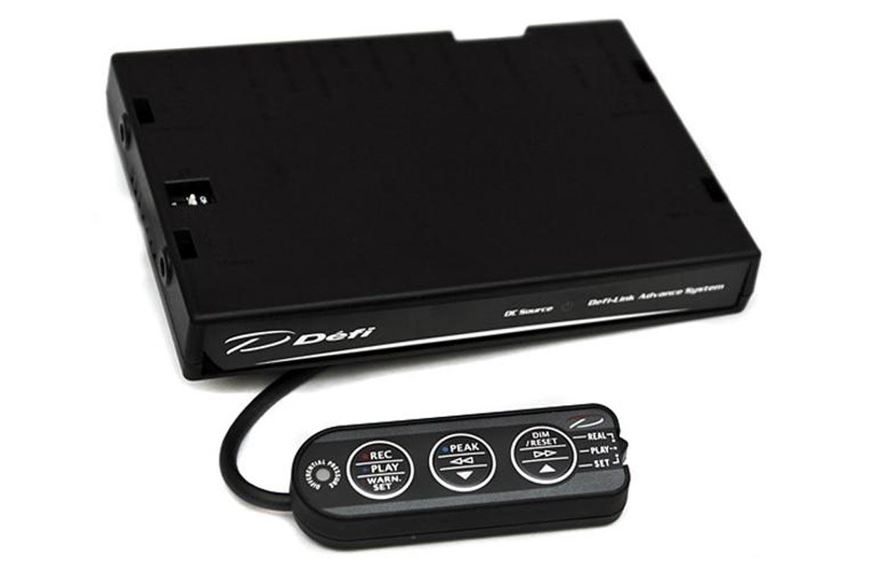

DEFI BF/CR/A1 Control Unit

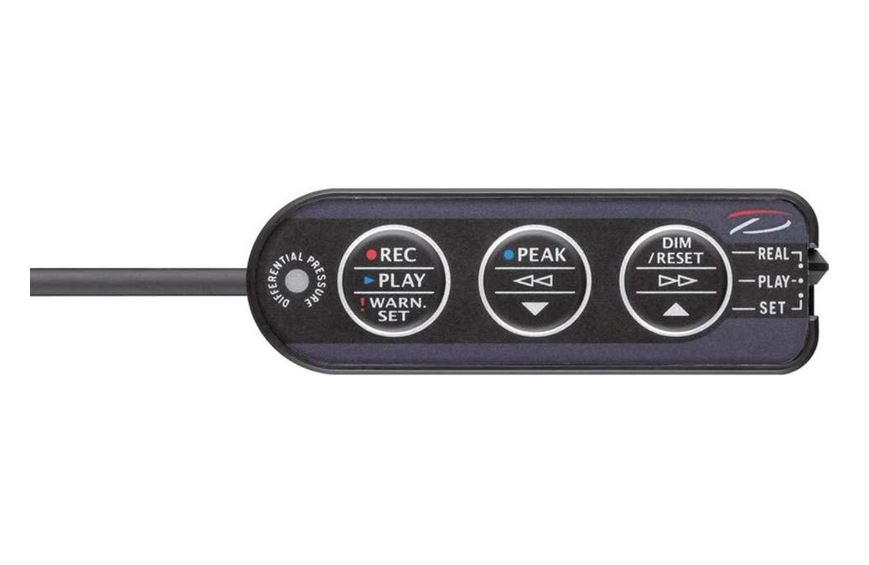

| 1 | Switch unit(white) |
| 2 | Speed & Tachometer signal wire(blue) |
| 3 | Exhaust temp sensor wire(black) |
| 4 | Water temp sensor wire(pink) |
| 5 | Oil temp sensor wire(red) |
| 6 | Fuel press sensor wire(red) |
| 7 | Oil press sensor wire(white) |
| 8 | Turbo/In-Mani sensor wire(light blue) |
| 9 | Power source wire(beige) |
| 10 | Meter wire(white) |
| 11 | Meter wire(white) |
Other specifications
| Power supply voltage | 10V to 16V DC (12V vehicle only) |
| Current consumption | Maximum during 7 gauges are connected +B 2A(IGN ON), 5mA(IGN OFF) ILM 800mA |
| Applicable number of cylinders | 1,2,3,4,5,6,8 |
| Note | *Products is for only on vehicles with a 12V electrical system. Never use products on 24V vehicles. *Products can not be installed in altered vehicles. *To install pressure gauges or temperature gauges, proper sensor attachments are necessary. The thread sizes of sensors are 1/8PT. |
